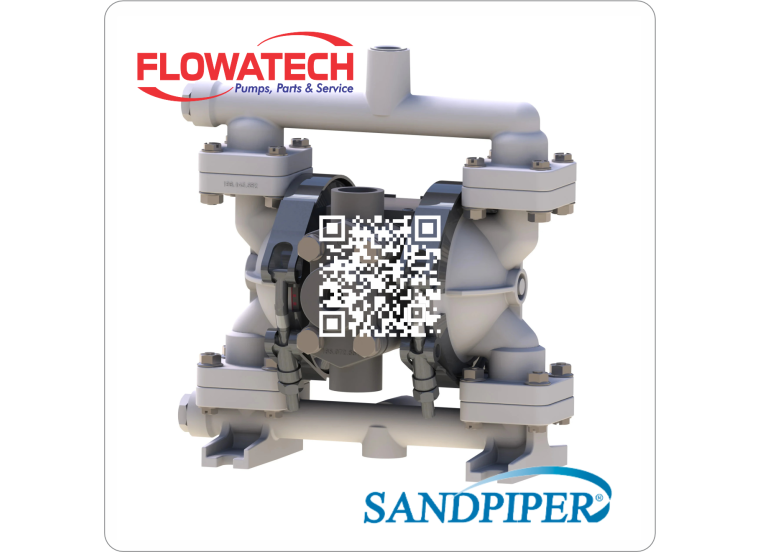

Model	PB 1/4 TS3K
Nhãn hiệu	Sandpiper-USA
Xuất xứ	China
Lưu lượng Max	19 LPM
Áp suất Max	7.0 bar
Đường kính hút xả	1/4” BSP
Đường cấp khí	1/4” NPT
Áp suất khí Max	7.0 bar
Vật liệu Màng bơm	Santo
Vật liệu Bi bơm	Santo
Vật liệu thân bơm	PVDF

Bảng thông số và vật liệu chi tiết của Bơm màng khí nén Sandpiper PB1/4 Thân Nhựa

Bảng tra ký hiệu Model bơm màng Sandpiper PB1/4

 Thông số kích thước lắp đặt bơm màng Sandpiper PB1/4

Danh sách phụ tùng bơm màng khí nén Sandpiper PB1/4

031.107.551 Main Air Valve Body Assembly

031.107.503 Main Air Valve Body Assembly (Conductive Acetal only)

031.101.000 Pilot Valve Assembly

475.145.000 Air Exhaust Conversion Kit

476.388.354 Wetted End Kit Santoprene Diaphragms & Balls

476.388.356 Wetted End Kit Hytrel Diaphragms & Balls

476.388.600 Wetted End Kit PTFE Diaphragms & Balls

476.388.644 Wetted End Kit Santoprene Diaphragms & PTFE Balls

476.129.000 Air End Kit

031.107.551 Valve, Main Air ..........................................................................

031.107.503 Valve, Main Air (Conductive Acetal) ..........................................

031.106.000 Sleeve and Spool Set (Includes O-Rings).................................

095.077.551 Body, Air Valve ..........................................................................

095.077.503 Body, Air Valve (Conductive Acetal) ..........................................

165.074.551 Cap, End, Air Valve ...................................................................

165.074.503 Cap, End, Air Valve (Conductive Acetal) ...................................

560.101.360 O-Ring.......................................................................................

675.051.115 Ring, Retaining..........................................................................

050.033.354 Ball, Check (Santoprene)..........................................................

050.033.356 Ball, Check (Hytrel) ...................................................................

050.034.600 Ball, Check (PTFE) ...................................................................

114.019.551 F Intermediate ..............................................................................

114.019.503 F Intermediate (Conductive Acetal)..............................................

720.031.359 Seal, Diaphragm Rod................................................................

449.021.551 Insert, Gland..............................................................................

449.021.503 Insert, Gland (Conductive Acetal) .............................................

165.072.551 Cap. Air Inlet..............................................................................

165.072.503 Cap. Air Inlet (Conductive Acetal) .............................................

165.073.551 Cap, Muffler...............................................................................

165.073.503 Cap, Muffler (Conductive Acetal) ..............................................

170.103.115 Capscrew, Hex HD, 1/4-20 X 5"................................................

196.145.552 Chamber, Outer (Polypropylene) ..............................................

196.145.520 Chamber, Outer (PVDF)............................................................

196.145.502 Chamber, Outer (Conductive Acetal) ........................................

200.057.115 Clamp (Includes 8.1 & 8.2)........................................................

100.002.115 T-Bolt.........................................................................................

545.027.337 Nut, Hex, 1/4-28UNF.................................................................

286.069.354 Diaphragm (Santoprene)...........................................................

286.069.356 Diaphragm (Hytrel)....................................................................

286.070.600 Diaphragm (PTFE) ...................................................................

360.084.360 Gasket, Intermediate.................................................................

360.084.379 Gasket, Intermediate (Cond Acetal Pumps)

360.085.360 Gasket, Valve Body...................................................................

360.085.379 Gasket, Valve Body (Cond Acetal Pumps)................................

360.086.360 Gasket, Spacer .........................................................................

518.210.552 Manifold, Discharge (Polypropylene) (Includes Plug) ...............

518.210.520 Manifold, Discharge (PVDF) (Includes Plug) ............................

518.210.502 Manifold, Discharge (Conductive Acetal) (Includes Plug) .........

518.211.552 Manifold, Suction (Polypropylene) (Includes Plug) ...................

518.211.520 Manifold, Suction (PVDF) (Includes Plug).................................

518.211.502 Manifold, Suction (Conductive Acetal) (Includes Plug) .............

530.022.550 Muffler .......................................................................................

544.004.115 Nut, Hex Flange, 10-32.............................................................

545.003.330 Nut, Hex, 1/4-20........................................................................

612.146.552 Plate, Outer Diaphragm (Polypropylene) ..................................

612.146.520 Plate, Outer Diaphragm (PVDF) ...............................................

612.146.502 Plate, Outer Diaphragm (Conductive Acetal) ............................

612.147.150 Plate, Inner Diaphragm .............................................................

618.056.552 Plug, Manifold (Polypropylene) .................................................

618.056.520 Plug, Manifold (PVDF) ..............................................................

618.056.502 Plug, Manifold (Conductive Acetal) ...........................................

675.047.115 Ring, Retaining..........................................................................

685.046.120 Rod, Diaphragm........................................................................

706.023.115 Screw, Slotted Hex, Flange, 10-32 X 1.00 ................................

720.032.600 Seal, Check Valve.....................................................................

722.073.552 Seat, Check Valve (Polypropylene)...........................................

722.073.520 Seat, Check Valve (PVDF)........................................................

722.073.506 Seat, Check Valve (Conductive Acetal).....................................

755.038.000 Sleeve, Pilot Valve (Includes O-Ring) .......................................

560.066.360 O-Ring.......................................................................................

775.038.000 Spool, Pilot Valve (Includes O-Ring) .........................................

560.029.374 O-Ring.......................................................................................

901.037.115 Washer, Flat, 1/4 .......................................................................

920.025.000 Grounding Cable (Conductive Acetal) (Not Shown)..................

031.107.551 Valve, Main Air

031.106.000 Sleeve and Spool Set (Includes O-Rings)

095.077.551 Body, Air Valve

165.074.551 Cap, End, Air Valve

560.101.360 O-Ring

675.051.115 Ring, Retaining

031.107.503 Valve, Main Air (Conductive Acetal)

031.106.000 Sleeve and Spool Set (Includes O-Rings)

095.077.503 Body, Air Valve

165.074.503 Cap, End, Air Valve

560.101.360 O-Ring

675.051.115 Ring, Retaining

675.047.115 Ring, Retaining

755.038.000 Sleeve, Pilot Valve (Includes O-Ring)

560.066.360 O-Ring

775.038.000 Spool, Pilot Valve (Includes O-Ring)

560.029.374 O-Ring

675.047.115 Ring, Retaining . Pilot Plug Sleeve

755.037.000 Pilot Plug Sleeve with O.rings

360.106.360 Gasket, Intermediate Bracket

241.001.000 Connector, conduit

893.095.000 Solenoid Valve, NEMA 4

219.001.000 Solenoid Coil, 24 VDC

219.004.000 Solenoid Coil, 24 VAC/12 VDC

219.002.000 Solenoid Coil, 120 VAC

219.003.000 Solenoid Coil, 240 VAC

866.068.000 Tube Fitting

538.083.555 Nipple

835.009.555 Tee, Pipe

860.062.540 Tubing

866.069.000 Tube Fitting

114.019.551 F Intermediate

114.019.503 F Intermediate (Conductive Acetal)

720.031.359 Seal, Diaphragm Rod

449.021.551 Insert, Gland

449.021.503 Insert, Gland (Conductive Acetal)

200.057.115 Clamp (Includes 81 & 82)

100.002.115 T-Bolt

545.027.337 Nut, Hex, 1/4-28UNF

86.069.354 Diaphragm (Santoprene)

86.069.356 Diaphragm (Hytrel)

86.070.600 Diaphragm (PTFE)

360.086.360 Gasket, Spacer (PTFE Configuration Only)

612.146.552 Plate, Outer Diaphragm (Polypropylene)

612.146.520 Plate, Outer Diaphragm (PVDF)

612.146.502 Plate, Outer Diaphragm (Conductive Acetal)

612.147.150 Plate, Inner Diaphragm

685.046.120 Rod, Diaphragm
